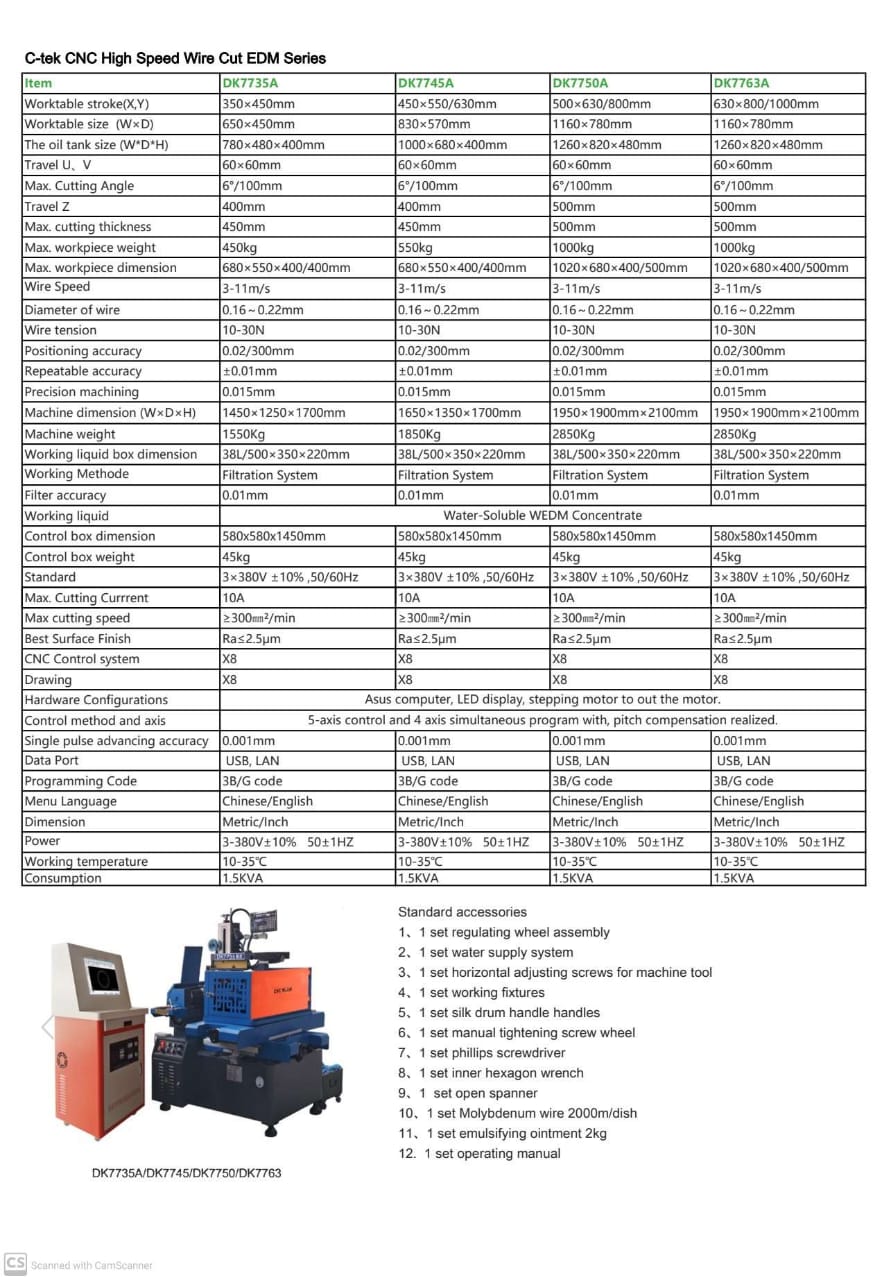

C-tek CNC High Speed Wire Cut EDM Series
High Precision CNC Wire EDM | 4-Axis Control | Advanced Cutting Technology
Key Specifications
Max. Cutting Current
10A
Max Cutting Speed
≥300 mm²/min
Best Surface Finish
Ra ≤ 2.5μm
Positioning Accuracy
0.02/300mm
Repeatable Accuracy
±0.01mm
CNC Control System
X8
Programming Code
3B/G code
Power Requirements
3×380V ±10%, 50/60Hz
DK7735A
DK7745A
DK7750A
DK7763A
| Item | DK7735A | DK7745A | DK7750A | DK7763A |
|---|---|---|---|---|
| Worktable stroke (X,Y) | 350×450mm | 450×550/630mm | 500×630/800mm | 630×800/1000mm |
| Worktable size (W×D) | 650×450mm | 830×570mm | 1160×780mm | 1160×780mm |
| The oil tank size (W×D×H) | 780×480×400mm | 1000×680×400mm | 1260×820×480mm | 1260×820×480mm |
| Travel U, V | 60×60mm | 60×60mm | 60×60mm | 60×60mm |
| Max. Cutting Angle | 6°/100mm | 6°/100mm | 6°/100mm | 6°/100mm |
| Travel Z | 400mm | 400mm | 500mm | 500mm |
| Max. cutting thickness | 450mm | 450mm | 500mm | 500mm |
| Max. workpiece weight | 450kg | 550kg | 1000kg | 1000kg |
| Max. workpiece dimension | 680×550×400/400mm | 680×550×400/400mm | 1020×680×400/500mm | 1020×680×400/500mm |
| Wire Speed | 3-11m/s | 3-11m/s | 3-11m/s | 3-11m/s |
| Diameter of wire | 0.16~0.22mm | 0.16~0.22mm | 0.16~0.22mm | 0.16~0.22mm |
| Wire tension | 10-30N | 10-30N | 10-30N | 10-30N |
| Positioning accuracy | 0.02/300mm | 0.02/300mm | 0.02/300mm | 0.02/300mm |
| Repeatable accuracy | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
| Precision machining | 0.015mm | 0.015mm | 0.015mm | 0.015mm |
| Machine dimension (W×D×H) | 1450×1250×1700mm | 1650×1350×1700mm | 1950×1900×2100mm | 1950×1900×2100mm |
| Machine weight | 1550Kg | 1850Kg | 2850Kg | 2850Kg |
| Working liquid box dimension | 38L/500×350×220mm | 38L/500×350×220mm | 38L/500×350×220mm | 38L/500×350×220mm |
| Filter accuracy | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
| Control box dimension | 580×580×1450mm | 580×580×1450mm | 580×580×1450mm | 580×580×1450mm |
| Control box weight | 45kg | 45kg | 45kg | 45kg |
| Power | 3×380V ±10%, 50/60Hz | 3×380V ±10%, 50/60Hz | 3×380V ±10%, 50/60Hz | 3×380V ±10%, 50/60Hz |
| Max. Cutting Current | 10A | 10A | 10A | 10A |
| Max cutting speed | ≥300㎜²/min | ≥300㎜²/min | ≥300㎜²/min | ≥300㎜²/min |
| Best Surface Finish | Ra≤2.5μm | Ra≤2.5μm | Ra≤2.5μm | Ra≤2.5μm |
| CNC Control system | X8 | X8 | X8 | X8 |
| Single pulse advancing accuracy | 0.001mm | 0.001mm | 0.001mm | 0.001mm |
| Data Port | USB, LAN | USB, LAN | USB, LAN | USB, LAN |
| Programming Code | 3B/G code | 3B/G code | 3B/G code | 3B/G code |
| Menu Language | Chinese/English | Chinese/English | Chinese/English | Chinese/English |
| Dimension | Metric/inch | Metric/inch | Metric/inch | Metric/inch |
| Working temperature | 10-35℃ | 10-35℃ | 10-35℃ | 10-35℃ |
| Consumption | 1.5KVA | 1.5KVA | 1.5KVA | 1.5KVA |
Precision Engineering
- High precision positioning accuracy of 0.02/300mm
- Repeatable accuracy of ±0.01mm
- Precision machining of 0.015mm
- Single pulse advancing accuracy of 0.001mm
- Best surface finish of Ra ≤ 2.5μm
Advanced Control System
- X8 CNC control system
- 5-axis control and 4-axis simultaneous programming
- Pitch compensation realized
- Asus computer with LED display
- Stepping motor drive system
- USB and LAN data ports
Standard Accessories
- 1 set regulating wheel assembly
- 1 set water supply system
- 1 set horizontal adjusting screws for machine tool
- 1 set working fixtures
- 1 set Molybdenum wire 2000m/dish
- 1 set emulsifying ointment 2kg
- Full set of tools and operating manual
Applications
Precision Tooling
Manufacturing of precision molds, dies, and tooling components
Automotive Parts
Production of intricate automotive components and prototypes
Electronics Industry
Fabrication of precision parts for electronics and semiconductor equipment
General Machining
Versatile machining of complex parts from various conductive materials
