C-tek Wire Cutting Machine
Driven by Step Motor Series | High Precision | 5-Axis Control
Key Specifications
Max. Cutting Angle
6°/100mm
Machine Weight
1650-3250 kg
Positioning Accuracy
0.02/300mm
Repeatable Accuracy
±0.005mm
Best Surface Finish
Ra≤1.0μm
Wire Speed
1.18-11.18m/s
Max. Cutting Current
10A
Max Cutting Speed
≥300mm²/min
CNC Control System
X8
Power
3×380V ±10%, 50/60Hz
Advanced Control System
- 5-axis control and 4-axis simultaneous programming
- Pitch compensation for precision machining
- Single pulse advancing accuracy of 0.001mm
- X8 CNC control system with intuitive interface
- Supports 3B/G code programming
High Precision Performance
- Positioning accuracy: 0.02/300mm
- Repeatable accuracy: ±0.005mm
- Precision machining: 0.01mm (SKD11 or Gr12, 20x20x20mm)
- Best surface finish: Ra≤1.0μm
- Filter accuracy: 0.01mm
Flexible Configuration
- Multiple models with varying worktable sizes
- Max. cutting thickness up to 400/500mm
- Max. workpiece weight from 500kg to 1000kg
- Wire diameter: 0.16~0.22mm
- Wire tension: 10-30N adjustable
Model Specifications

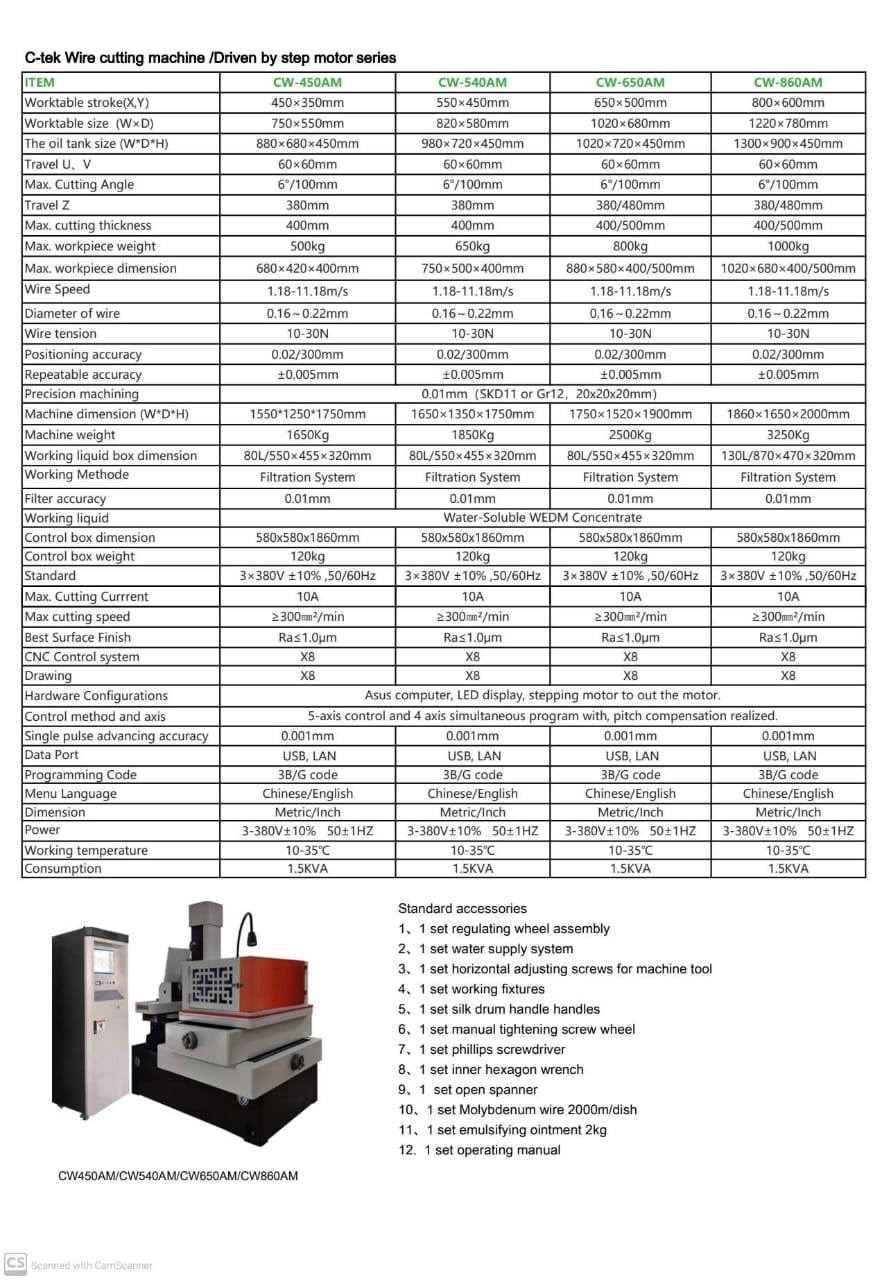

| Specification | CW-450AM | CW-540AM | CW-650AM | CW-860AM |
|---|---|---|---|---|
| Worktable stroke (X,Y) | 450×350mm | 550×450mm | 650×500mm | 800×600mm |
| Worktable size (W×D) | 750×550mm | 820×580mm | 1020×680mm | 1220×780mm |
| Travel U, V | 60×60mm | 60×60mm | 60×60mm | 60×60mm |
| Travel Z | 380mm | 380mm | 380/480mm | 380/480mm |
| Max. cutting thickness | 400mm | 400mm | 400/500mm | 400/500mm |
| Max. workpiece weight | 500kg | 650kg | 800kg | 1000kg |
| Machine weight | 1650kg | 1850kg | 2500kg | 3250kg |
Additional Specifications
Hardware Configuration
Asus computer, LED display, stepping motor
Data Port
USB, LAN
Programming Code
3B/G code
Menu Language
Chinese/English
Dimension
Metric/inch
Working Temperature
10-35℃
Consumption
1.5KVA
Standard Accessories
- 1 set regulating wheel assembly
- 1 set water supply system
- 1 set horizontal adjusting screws for machine tool
- 1 set working fixtures
- 1 set silk drum handle handles
- 1 set manual tightening screw wheel
- 1 set phillips screwdriver
- 1 set inner hexagon wrench
- 1 set open spanner
- 1 set Molybdenum wire 2000m/dish
- 1 set emulsifying ointment 2kg
- 1 set operating manual
Applications
Precision Tooling
Manufacturing of precision molds, dies, and tooling components
Automotive Parts
Production of intricate automotive components and transmission parts
Electronics Industry
Fabrication of delicate electronic components and connector parts
Medical Devices
Manufacturing of surgical instruments and medical implant components
