SPARK RAM EDM Machine
RAM Type EDM | High Precision Machining | Heavy Duty Performance
Key Specifications
Max. Electrode Weight
450 Kgs
Max. Workpiece Weight
10,000-15,000 Kgs
Min. Setting Unit
0.005mm (0.001mm)
Max. Material Removal Rate
220-720 mm/min
Best Surface Roughness
0.2-0.25 μmRa
Electrode Wear Rate
< 0.2%
Max. Machining Current
30-100 A
Total Power Input
4-12 KVA
CNC2510 Single/Double
CNC3010 Single/Double
Machine Unit Specifications

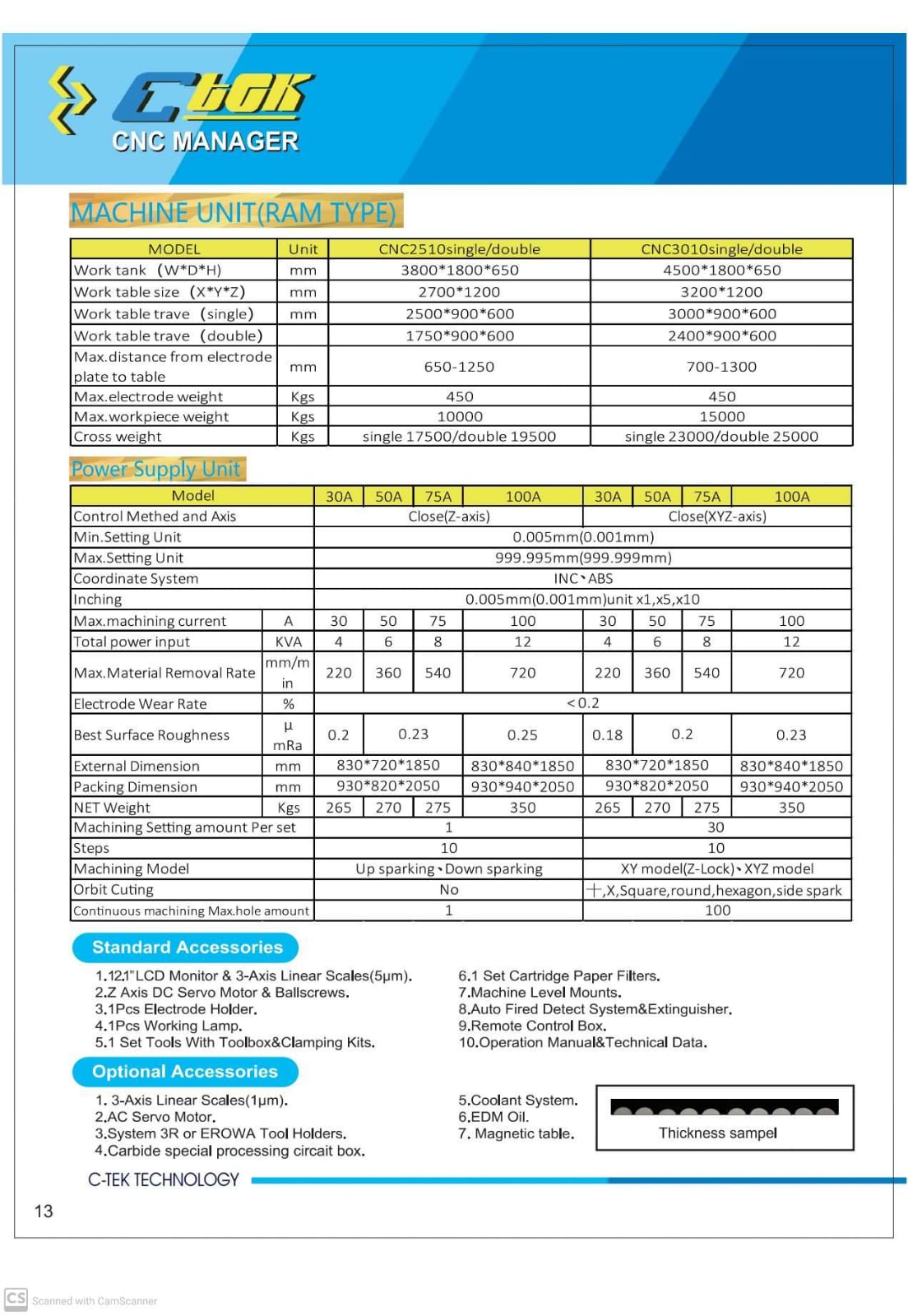

| MODEL | Unit | CNC2510 single/double | CNC3010 single/double |
|---|---|---|---|
| Work tank (W*D*H) | mm | 3800×1800×650 | 4500×1800×650 |
| Work table size (X×Y) | mm | 2700×1200 | 3200×1200 |
| Work table travel (single) | mm | 2500×900×600 | 3000×900×600 |
| Work table travel (double) | mm | 1750×900×600 | 2400×900×600 |
| Max. distance from electrode plate to table | mm | 650-1250 | 700-1300 |
| Max. electrode weight | Kgs | 450 | 450 |
| Max. workpiece weight | Kgs | 10000 | 15000 |
| Gross weight | Kgs | single 17500/double 19500 | single 23000/double 25000 |
Power Supply Unit Specifications
| Model | Close (Z-axis) | Close (XYZ-axis) | ||||||
|---|---|---|---|---|---|---|---|---|
| 30A | 50A | 75A | 100A | 30A | 50A | 75A | 100A | |
| Max. machining current | 30A | 50A | 75A | 100A | 30A | 50A | 75A | 100A |
| Total power input | 4 KVA | 6 KVA | 8 KVA | 12 KVA | 4 KVA | 6 KVA | 8 KVA | 12 KVA |
| Max. Material Removal Rate | 220 mm/min | 360 mm/min | 540 mm/min | 720 mm/min | 220 mm/min | 360 mm/min | 540 mm/min | 720 mm/min |
| Best Surface Roughness | 0.2 μmRa | 0.23 μmRa | 0.25 μmRa | 0.18 μmRa | 0.2 μmRa | 0.23 μmRa | 0.25 μmRa | 0.18 μmRa |
| External Dimension | 830×720×1850 mm | 830×840×1850 mm | ||||||
| Packing Dimension | 930×820×2050 mm | 930×940×2050 mm | ||||||
| NET Weight | 265 Kgs | 270 Kgs | 275 Kgs | 350 Kgs | 265 Kgs | 270 Kgs | 275 Kgs | 350 Kgs |
Control Features
- Min. Setting Unit: 0.005mm (0.001mm)
- Max. Setting Unit: 999.995mm (999.999mm)
- INC/ABS Coordinate System
- Inching: 0.005mm (0.001mm) unit x1, x5, x10
- Machining Setting amount: 30 per set, 10 steps
- Continuous machining Max. hole amount: 100
Machining Capabilities
- Up sparking & Down sparking modes
- XY model (Z-Lock) + XYZ model
- Orbit Cutting: +, X, Square, Round, Hexagon, Side spark
- Electrode Wear Rate: < 0.2%
- Best Surface Roughness: 0.2-0.25 μmRa
- Max. Material Removal Rate: 220-720 mm/min
Standard Accessories
- 12" LCD Monitor & 3-Axis Linear Scales (5μm)
- 2 Axis DC Servo Motor & Ballscrews
- 1Pcs Electrode Holder
- 1Pcs Working Lamp
- 1 Set Tools With Toolbox & Clamping Kits
- 1 Set Cartridge Paper Filters
- Machine Level Mounts
- Auto Fire Detect System & Extinguisher
- Remote Control Box
- Operation Manual & Technical Data
Optional Accessories
- 3-Axis Linear Scales (1μm)
- A.C Servo Motor
- System 3R or EROWA Tool Holders
- Carbide special processing circuit box
- Coolant System
- EDM Oil
- Magnetic table
Applications
Mold Manufacturing
Precision machining of complex molds and dies for various industries
Aerospace Components
Manufacturing of intricate aerospace parts with tight tolerances
Automotive Industry
Production of complex automotive components and tooling
Heavy Machinery
Machining of large, heavy components for industrial equipment
