C-TEK Wire Cutting Machine
AC Servo Motor Series | High Precision | 5-Axis Control | Superior Performance
Key Specifications
Max. Cutting Angle
6°/100mm
Machine Weight
1850-3850 kg
Positioning Accuracy
0.02/300mm
Repeatable Accuracy
±0.005mm
Best Surface Finish
Ra≤0.8μm
Wire Speed
1.18-11.18m/s
Max. Cutting Current
10A
Max Cutting Speed
≥300mm²/min
CNC Control System
Autocut
Power
3×380V ±10%, 50/60Hz
AC Servo Motor System
- Yaskawa AC servo driver system for superior performance
- Higher torque and better speed control than step motors
- 5-axis control and 4-axis simultaneous programming
- Pitch compensation for precision machining
- Single pulse advancing accuracy of 0.001mm
High Precision Performance
- Positioning accuracy: 0.02/300mm
- Repeatable accuracy: ±0.005mm
- Precision machining: ±0.005mm (SKD11 or Gr12, 20x20x20mm)
- Best surface finish: Ra≤0.8μm
- Filter accuracy: 0.01mm
Advanced Control System
- Autocut CNC control system with intuitive interface
- NCCAD drawing software for easy design integration
- Supports 3B/ISO/G code programming
- USB and LAN connectivity for data transfer
- Chinese/English menu language support

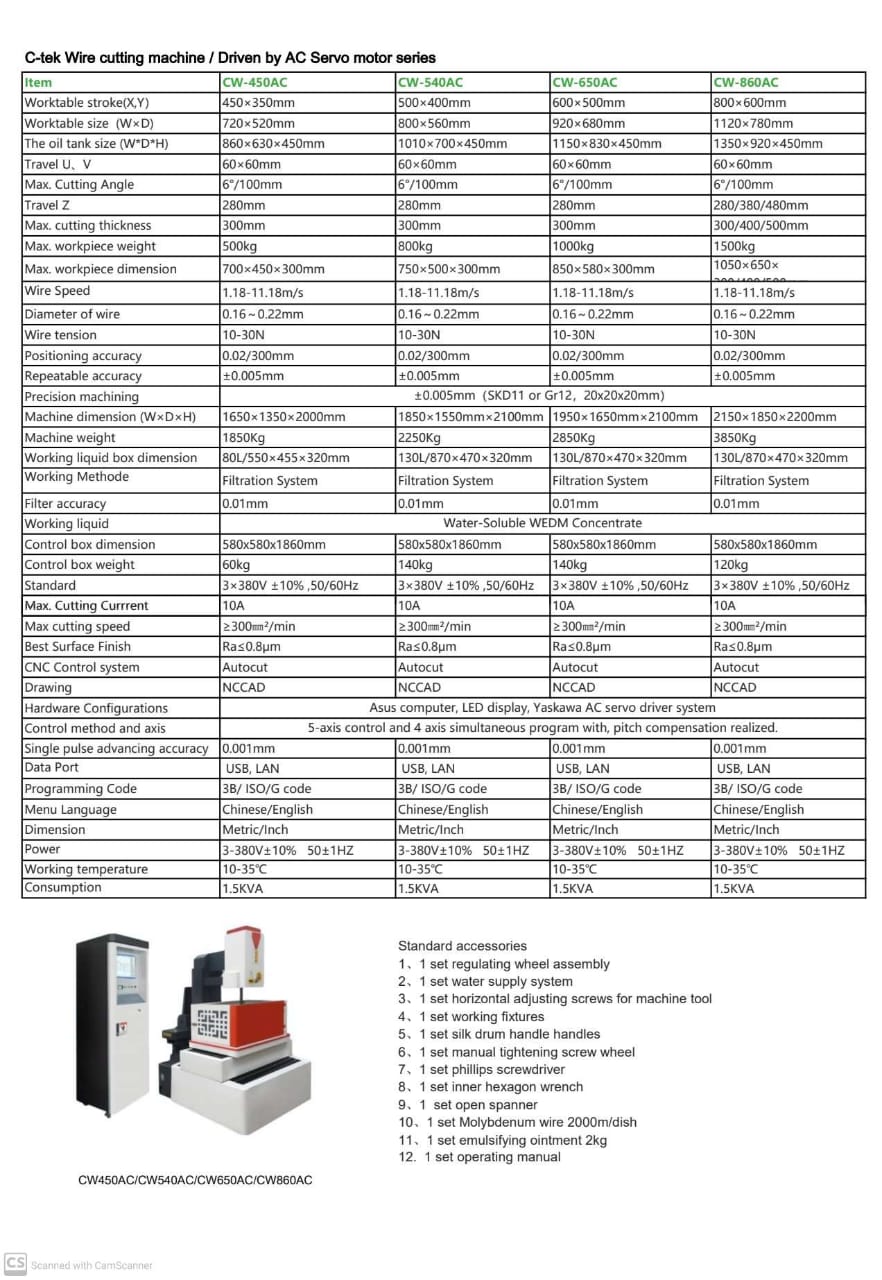

Model Specifications
| Specification | CW-450AC | CW-540AC | CW-550AC | CW-860AC |
|---|---|---|---|---|
| Worktable stroke (X,Y) | 450×350mm | 500×400mm | 600×500mm | 800×600mm |
| Worktable size (W×D) | 720×520mm | 800×560mm | 920×680mm | 1120×780mm |
| Travel U, V | 60×60mm | 60×60mm | 60×60mm | 60×60mm |
| Travel Z | 280mm | 280mm | 280mm | 280/380/480mm |
| Max. cutting thickness | 300mm | 300mm | 300mm | 300/400/500mm |
| Max. workpiece weight | 500kg | 800kg | 1000kg | 1500kg |
| Machine weight | 1850kg | 2250kg | 2850kg | 3850kg |
Additional Specifications
Hardware Configuration
Asus computer, LED display, Yaskawa AC servo driver system
Data Port
USB, LAN
Programming Code
3B/ISO/G code
Menu Language
Chinese/English
Dimension
Metric/inch
Working Temperature
10-35°C
Consumption
1.5KVA
Working Liquid
Water-Soluble WEDM Concentrate
Standard Accessories
- 1 set regulating wheel assembly
- 1 set water supply system
- 1 set horizontal adjusting screws for machine tool
- 1 set working fixtures
- 1 set silk drum handle handles
- 1 set manual tightening screw wheel
- 1 set phillips screwdriver
- 1 set inner hexagon wrench
- 1 set open spanner
- 1 set Molybdenum wire 2000m/dish
- 1 set emulsifying ointment 2kg
- 1 set operating manual
Applications
Precision Tooling
Manufacturing of high-precision molds, dies, and tooling components
Automotive Parts
Production of intricate automotive components and transmission parts
Aerospace Components
Fabrication of precision aerospace parts with tight tolerances
Medical Devices
Manufacturing of surgical instruments and medical implant components
